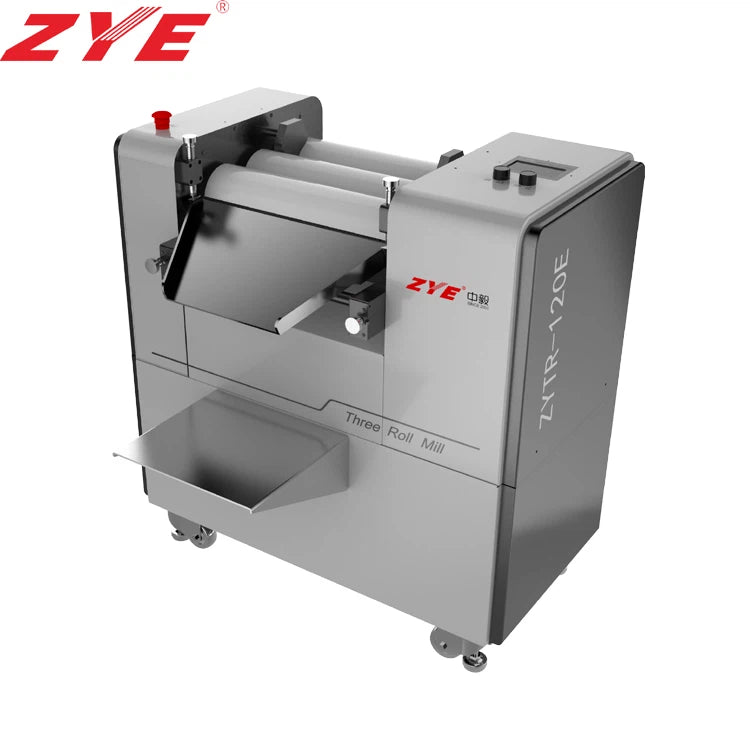

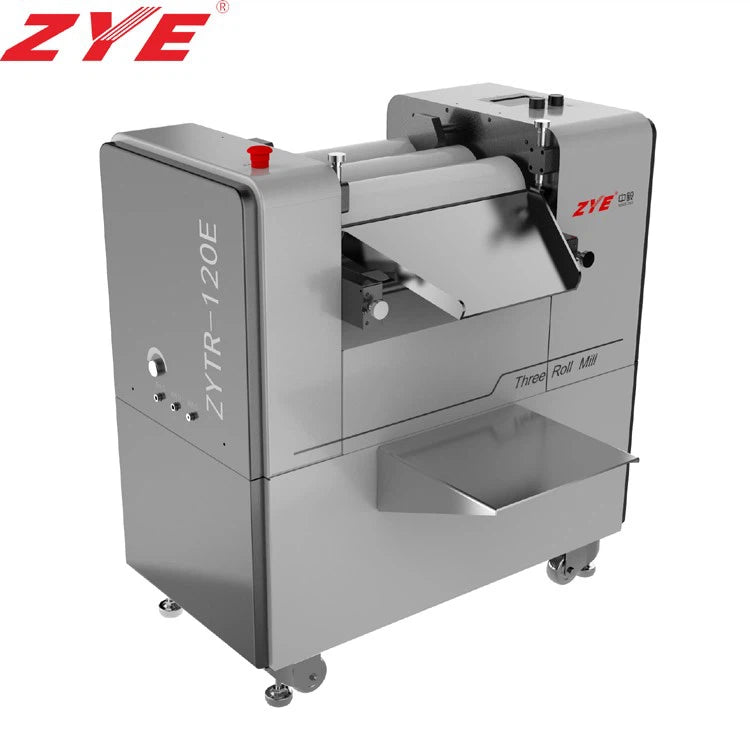

120mm Automatic Three Roller Mill ZYTR-120E

120mm Automatic Three Roller Mill ZYTR-120E

Contact Us For The Price

Product Specification

SPECIFICATION FOR ZYTR-120E THREE ROLL MILL

Diameter of Roller

120mm

Length of Roller

450mm

Roller Speed Ratio

1:2.7:7.2

Power Configuration

Servo motor

Power/Voltage

3KW, 220V/380V

Throughput

0.5-60L/h

Size

L1020mm*W820mm*H1000mm

N.W.

350KGS

Concentricity/Straightness

< 3 micron

Planeness

< 0.3 micron

Motion Pattern

Gap Mode, Pressure Mode, Cleaning Mode

Option

The roller can be heated or cooled(Optional)



Main Feature

1. Roller Material: Al2O3/ SiC/ Si3N4/ SS, Import Nanoscale Ceramic Roller

2. Ceramic Roll Speed: 0-500RPM

3. Ceramic Roll Spacing: 5-120 Micron

4. Power Configuration: Servo motor, Stable operation, Convenient and safe

5. Selection Configuration: The roller can be heated or cooled (Optional)

6. High precise (minimum 1μm, depend on materials)

7. Ceramic roller precision: concentricity < 3micron, linear degree < 3micron, exterior planeness < 0.3micron

8. Electric Control: Touch screen, support to storage 10 recipes (10 parts per recipe)



Application

Our three roll mill is widely used for printing ink & coating, new material, chemistry, pharmacy & medical treatment, electronic industry, food and cosmetic. Like paint, ceramic paste, resin, chocolate, lipstick and so on. Especially for high viscosity and good fineness products.
