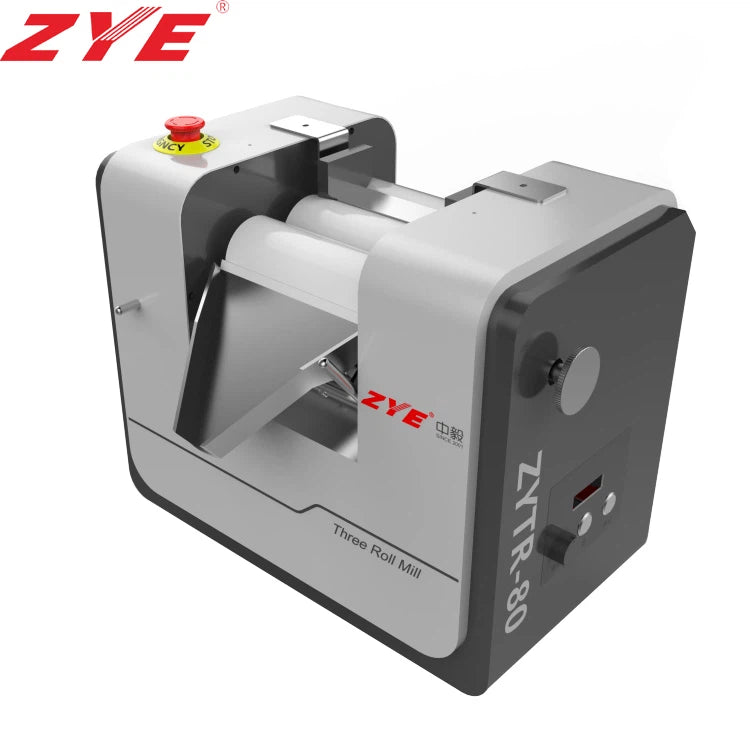

80mm Manual Three Roll Mill ZYTR-80
80mm Manual Three Roll Mill ZYTR-80
80mm Manual Three Roll Mill
Product Specification
|
SPECIFICATION FOR ZYTR-80 THREE ROLL MILL |
|||
|
Diameter of Roller |
80mm |
Length of Roller |
200mm |
|
Roller Speed Ratio |
1:3:9 |
Power Configuration |
Servo Motor |
|
Power/Voltage |
1.5KW/220V |
Throughput |
Up to 20L/h |
|
Size |
L500*W460*H500mm |
N.W. |
60KG |
|
Concentricity/Straightness |
< 2 micron |
Planeness |
0.3 micron |
Main Feature
1. Roller Material: ZrO2/ Al2O3/ Si3N4, Nanoscale Ceramic Roller
2. Ceramic Roll Speed: 0-500RPM
3. Power Configuration: Servo motor, Steady moment, Safe and reliable
4. Adjust the gap between two rolls by single handle, Ceramic rollers parallel movement, more convenient
5. High precise (minimum 1μm, depend on materials)
6. Ceramic roller precision: concentricity < 2 micron, linear degree < 2micron, exterior planeness < 0.3micron
7. Easy-cleaning roller
8. Hopper(optional)
9. Operate manually
Application
Three Roller Mill is suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness. The desired grinding effect is obtained by the friction and crushing action between three horizontal rollers rotating at varying speeds in the Hand Three Roller Mill or Manual Three Roller Mill. The clearance between the rollers is adjusted manually. It is equipped with emergency brake button to prevent equipment damage. The roller is a casting with special hard alloy or ceramic materials.
