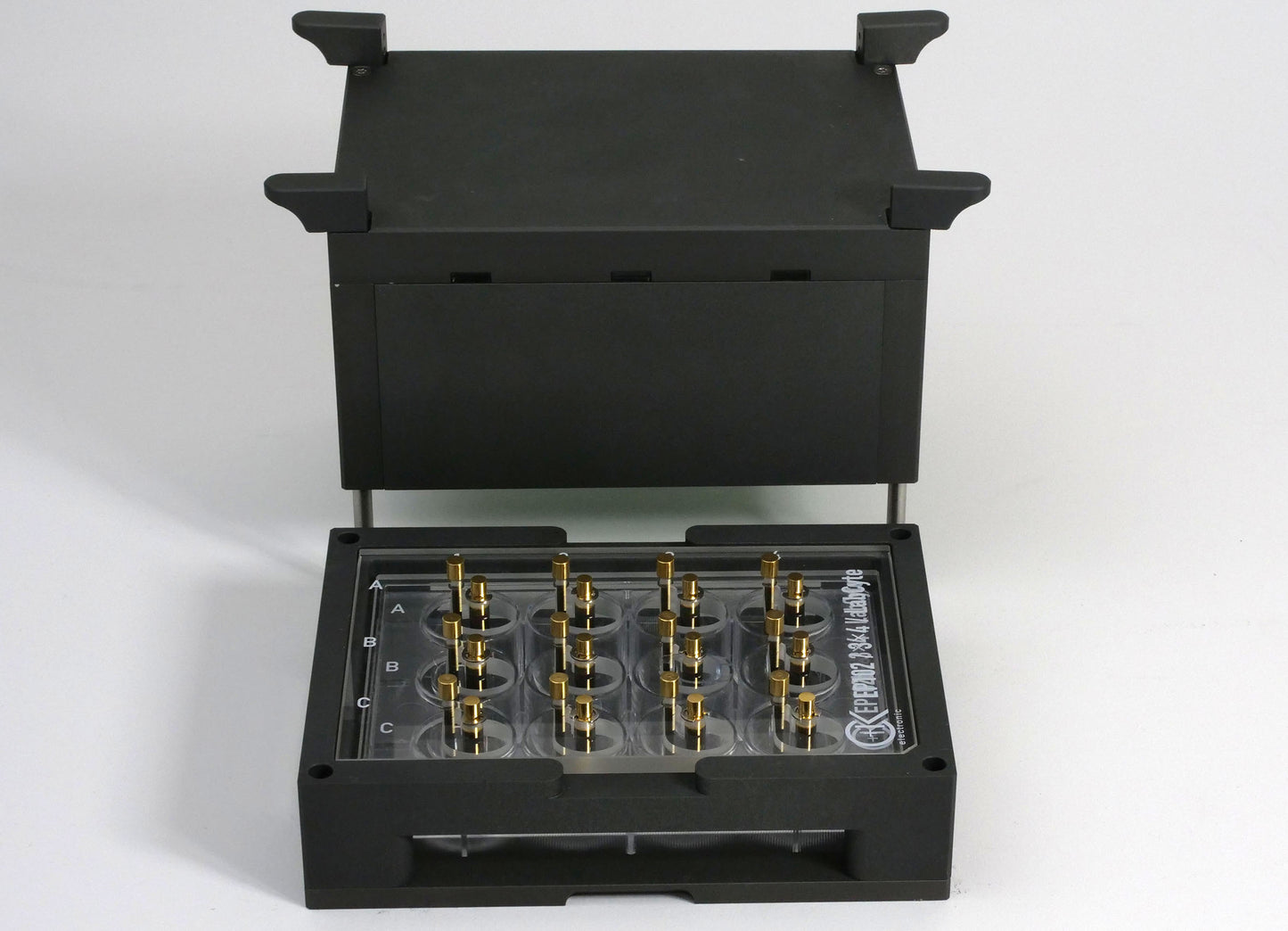

C+K CellSpectrometer CSM 2100

CellSpectrometer CSM 2100

High-Throughput Impedance Spectrometry & TEER Analyzer for Cell Culture Research

The CellSpectrometer CSM 2100 is a compact yet powerful impedance spectrometer designed to evaluate the integrity, permeability, and barrier quality of cell culture tissue with precision and speed. Featuring 12 or 24 measurement channels, this advanced system enables simultaneous multi-sample analysis, making it a highly efficient tool for biomedical, pharmaceutical, and safety research.

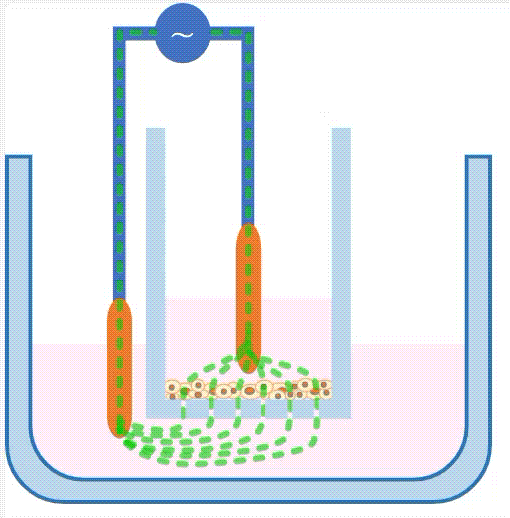

By leveraging full-spectrum impedance spectrometry (1 Hz–200 kHz) and rapid Transepithelial/Transendothelial Electrical Resistance (TEER) measurements, the CSM 2100 delivers high-resolution insights into tissue barrier function—critical for in-vitro modeling, drug absorption studies, toxicity testing, and more.

Why Choose the CSM 2100?

🔬 Precision in Every Measurement
Capture the full impedance spectrum across 48 discrete frequencies in just 100 seconds, or get rapid TEER readings at 12.5 Hz and 1000 Hz in as fast as 15 seconds, offering unmatched speed and accuracy in evaluating cell layer permeability.

⚡ Enhanced Signal Clarity
Equipped with patented TiN-coated electrodes, the CSM 2100 provides a 10:1 signal-to-noise ratio over traditional electrode materials, ensuring clean, reliable data with minimal background interference.

🧪 Effortless Integration
The device is compatible with standard well plates and integrates easily into existing lab setups, making it ideal for a wide range of applications—from drug development and cancer research to environmental and food safety testing.

💻 Smart, Intuitive Software
Navigate and analyze data effortlessly using the built-in graphical user interface, with real-time data visualization, statistical tools, and easy export functions for seamless reporting and documentation.

Key Applications

• Drug absorption and transport studies

• Toxicological screening

• Cancer research

• Tissue engineering

• Environmental and food safety assessments

With the CellSpectrometer CSM 2100, researchers can confidently assess cellular barrier function and permeability with industry-leading precision—empowering breakthroughs in science, medicine, and safety testing.
