Courage + Khazaka electronic GmbH

CutiScan CS 100 - Interesting Method to Measure Viscoelasticity & Anistropy

CutiScan CS 100 - Interesting Method to Measure Viscoelasticity & Anistropy

Contact Us For The Price

CutiScan CS 100

Interesting Method to Measure Viscoelasticity & Anistropy

Measurement of skin displacement during circular suction/relaxation by video (optical flow). The CutiScan offers a new dimension of looking at the mechanical properties of the skin (viscoelasticity & anisotropy).

Advantages of the CutiScan

  • Completely new & promising approach
  • Information not only about the elastic and viscoelastic properties but also on anisotropy and directionality of the skin.
  • For each measurement a complete video is available.
  • From that video a graph consisting of 360 elasticity curves is calculated and all curves can be saved in Excel®.
  • Overall measurement graphs are available: overall maximum and minimum amplitude and overall visco-elasticity and can also be transferred in Excel® by one mouse click.


Measurement Principle

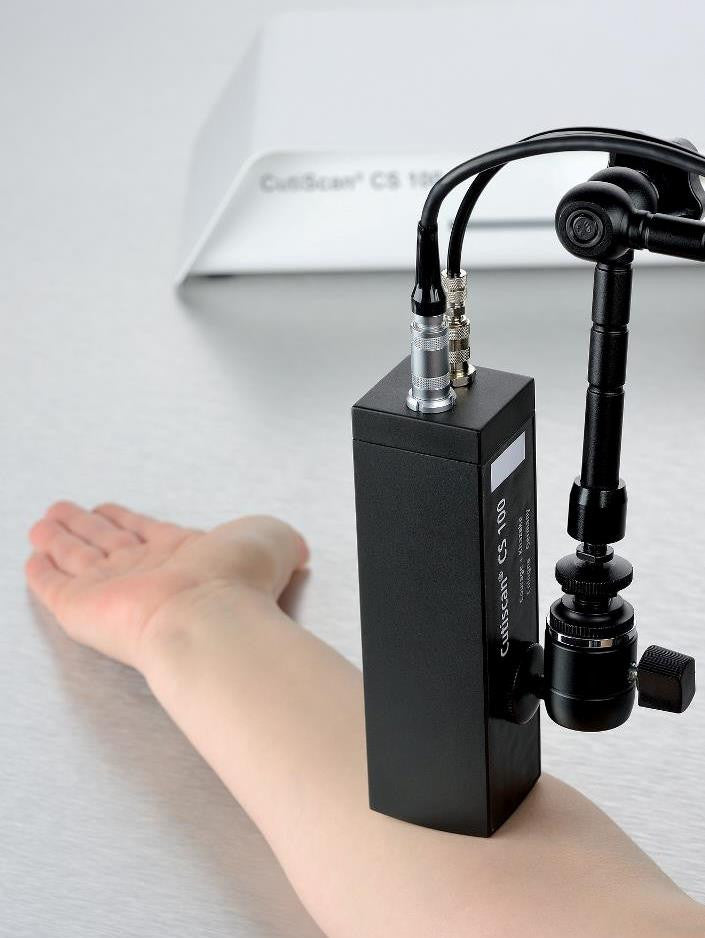

The novel probe combines mechanical force with imaging in a unique way. It consists of a suction ring (14 mm diameter) which draws the skin uniformly in all directions with a constant negative pressure provided inside the CutiScan-device for some seconds and then releases the applied pressure completely again for some seconds.

Cutiscan optical flow

During the suction and recovery time a high resolution CCD camera inside the probe (in the middle of the suction ring) monitors the displacement of each pixel by an optical flow algorithm (Horn-Schunk method) in a video. From that video an overall graph is generated. These graphs lead to interesting measurement parameters. Each direction in the graph is displayed as a curve of suction vs. relaxation (related to those known from other mechanical measurement methods for the skin). The black arrows indicate the displacement during suction time. The higher the skin's ability to resist the displacement, the more firm the skin. The red arrows indicate the returning of the skin into its original position by itself when the pressure in ceased. According to its elastic/viscoelastic properties skin cannot get back to the original position immediately after the pressure has stopped.

When looking at the skin site in all directions, it will become visible that in some directions the displacement and the returning rate are higher than in others depending on the linearity of the skin (anisotropy).

Cutiscan principle
